How to Increase SSH Connection Timeout in Linux

Introduction

Have you ever experienced your SSH session disconnecting automatically after being idle for a few minutes? This can be frustrating, especially when you’re working on remote servers and need to maintain long-running connections.

In this guide, you’ll learn how to increase the SSH connection timeout in Linux to keep your remote sessions alive for longer periods. We’ll walk through the configuration process step by step with clear examples.

What is SSH Connection Timeout?

SSH connection timeout is the duration after which an idle SSH session automatically disconnects. By default, SSH servers terminate inactive sessions to free up resources and improve security. However, you can customize this timeout value based on your needs.

Understanding SSH Timeout Parameters

Before we modify the configuration, let’s understand the two key parameters that control SSH timeouts:

ClientAliveInterval

This parameter specifies the time (in seconds) that the server waits before sending a “keep-alive” message to the client. These messages ensure the connection remains active even when no data is being transmitted.

ClientAliveCountMax

This parameter defines how many keep-alive messages the server will send without receiving a response from the client. If the server doesn’t receive any response after sending this many messages, it will disconnect the session.

How Timeout is Calculated

The actual timeout value is calculated using this simple formula:

Timeout (in seconds) = ClientAliveInterval × ClientAliveCountMax

For example:

ClientAliveInterval = 1200 seconds (20 minutes)
ClientAliveCountMax = 3
Total Timeout = 1200 × 3 = 3600 seconds (1 hour)

Step-by-Step Guide to Increase SSH Connection Timeout

Follow these steps to configure SSH timeout on your Linux server:

Step 1: Access the SSH Configuration File

First, open the SSH daemon configuration file using your preferred text editor. You’ll need root or sudo privileges:

bash

sudo nano /etc/ssh/sshd_config

Or if you prefer vim:

bash

sudo vim /etc/ssh/sshd_config

Step 2: Locate the Timeout Parameters

Scroll through the file and find these two lines:

#ClientAliveInterval
#ClientAliveCountMax

They will likely be commented out (indicated by the # symbol at the beginning).

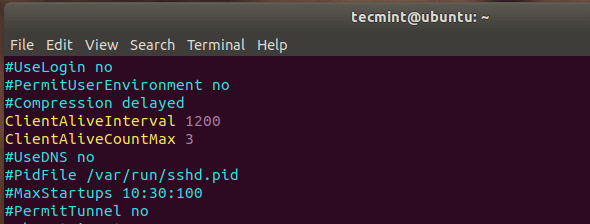

Step 3: Configure the Parameters

Remove the hash symbol (#) to uncomment the lines and set your desired values:

Option 1: Using Both Parameters

ClientAliveInterval 1200
ClientAliveCountMax 3

This configuration will:

Send a keep-alive message every 1200 seconds (20 minutes)
Send up to 3 messages without response
Keep the session alive for 3600 seconds (1 hour) of idle time

Option 2: Using ClientAliveInterval Alone

For simplicity, you can set just the ClientAliveInterval parameter:

ClientAliveInterval 3600

This will send a keep-alive message every 3600 seconds (1 hour), keeping the connection alive indefinitely as long as the client responds.

Step 4: Save the Configuration File

After making changes:

In nano: Press Ctrl + O to save, then Ctrl + X to exit
In vim: Press Esc, type :wq, and press Enter

Step 5: Reload the SSH Service

For the changes to take effect, reload the SSH daemon:

bash

sudo systemctl reload sshd

Alternatively, you can restart the service:

bash

sudo systemctl restart sshd

Common Timeout Configuration Examples

Here are some practical examples for different use cases:

For Short Sessions (30 minutes)

ClientAliveInterval 600
ClientAliveCountMax 3

Timeout = 600 × 3 = 1800 seconds (30 minutes)

For Medium Sessions (2 hours)

ClientAliveInterval 1200
ClientAliveCountMax 6

Timeout = 1200 × 6 = 7200 seconds (2 hours)

For Long Sessions (4 hours)

ClientAliveInterval 1200
ClientAliveCountMax 12

Timeout = 1200 × 12 = 14400 seconds (4 hours)

Client-Side SSH Timeout Configuration (Optional)

You can also configure timeout settings on your local machine (SSH client). Edit your local SSH config file:

bash

nano ~/.ssh/config

Add these lines:

Host *
    ServerAliveInterval 1200
    ServerAliveCountMax 3

This ensures your client sends keep-alive messages to the server, preventing disconnection from the client side.

Important Security Considerations

While increasing SSH timeout improves convenience, keep these security points in mind:

Don’t Set Extremely High Values: Very long timeout periods can pose a security risk. If you leave your terminal unattended, someone could potentially access your active session.
Lock Your Screen: Always lock your computer screen when stepping away, regardless of your SSH timeout settings.
Use Reasonable Values: Set timeout values based on your actual work patterns. For most use cases, 1-2 hours is sufficient.
Consider Your Environment: In shared or public environments, use shorter timeout values for better security.
Combine with Other Security Measures: Use SSH keys, disable root login, and implement firewall rules for comprehensive security.

Troubleshooting Common Issues

Changes Not Taking Effect

If your configuration changes don’t work:

Check for syntax errors in the config file
Ensure you reloaded/restarted the SSH service
Verify you’re editing the correct config file (/etc/ssh/sshd_config not ssh_config)

Connection Still Dropping

If connections still drop after configuration:

Check if there’s a firewall or NAT device timing out connections
Verify both server and client configurations
Check system logs: sudo journalctl -u sshd -f

Verifying Your Configuration

To check if your settings are active:

bash

sudo sshd -T | grep clientalive

This command displays the current effective configuration for ClientAlive parameters.

Conclusion

Increasing the SSH connection timeout in Linux is straightforward and can significantly improve your workflow when working with remote servers. By configuring the ClientAliveInterval and ClientAliveCountMax parameters, you can prevent unwanted disconnections during idle periods.

Remember to balance convenience with security by setting appropriate timeout values for your environment. Don’t set the timeout too high, as this could create security vulnerabilities if someone gains physical access to your unlocked terminal.
